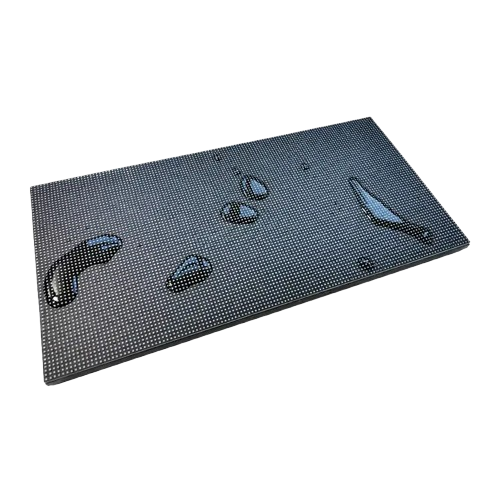

P2.5 Indoor GOB LED Display Module

Module Size: 320 × 160 × 16.6mm
Type: GOB SMD2121
Module Resolution: 128 × 64 dots
Pixel Density: 160,000 dots/㎡
Module Weight: 0.38 ± 0.02kg
HUB: HUB75
Brightness: 450–500 nits
Color Temperature: 2000K–9300K Adjustable
Beam Angle: 140° / 140°
Brightness/Color Uniformity: ≥98%
Contrast Ratio: 5000:1
Max Power Consumption: 488 W/㎡
Typical Power Consumption: 163 W/㎡
Input Voltage: AC 90–132V / AC 186–264V, 47–63Hz
Frame Rate: 60Hz
Refresh Rate: 3840Hz Standard / 7680Hz Optional
Processing Depth: 12–14 Bit
Video Support: 2K HD / 4K UHD
Single-Dot Brightness Calibration: Supported
Life Span: 100,000 Hours
Working Temperature/Humidity: -20°C to 45°C / 10%–50% RH
Storage Temperature/Humidity: -20°C to 50°C / 10%–60% RH
Certification: BIS / CE / CB / RoHS / EAC
