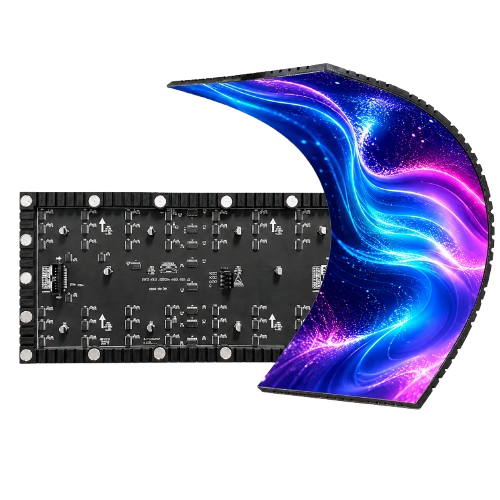

Product Description:
Pixel Pitch: 2.5mm
Pixel Configuration: 1R1G1B
LED Type: SMD2020 / SMD1515
Module Size: 320 × 160mm
Module Resolution: 128 × 64 dots
Module Weight: 431g
Pixel Density: 160,000 dots/㎡
Brightness: ≥600 nits
Maximum Power Consumption: 22W per Module
Average Power Consumption: 11W per Module
Refresh Rate: ≥3840Hz
Minimum Viewing Distance: ≥2.5 Meters
Specs are configured per cabinet and viewing distance. Final pitch, brightness, and warranty are confirmed in your quotation.
| Pixel Pitch | P2.5 |
|---|---|
| Application | Flexible / Indoor |
| Wattage | 380W/m² |
| Voltage | AC 110-240V |
| Brightness | 900 nits |
| CRI | ≥80 |
| IP Rating | IP30 |
| Color Temp | 6500K |
| Beam Angle | 140° |
| Material | Flexible GOB module |
| Warranty | 2 Years |
Send site size and indoor/outdoor use. We reply with pitch, brightness, and a quote.
